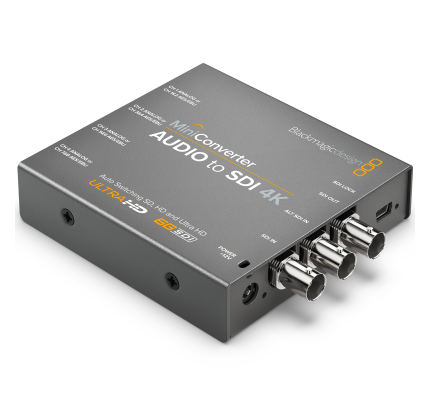

Blackmagic Mini Converter Audio - SDI 4K (BM-CONVMCAUDS4K)

Blackmagic Mini Converter Audio - SDI 4K (BM-CONVMCAUDS4K)

Mini Converter Audio na SDI 4K zapewnia wszystko czego potrzeba do wbudowania 4 kanałów analogowego audio lub 8 kanałów cyfrowego audio AES / EBU do jakiegokolwiek połączenia wideo SDI. Teraz można wbudować profesjonalne audio z urządzeń takich jak miksery audio i analogowe odtwarzacze do połączeń wideo SDI podczas korzystania z routerów lub odtwarzaczy lub zapewnić dodatkowe kanały audio do konwerterów wideo.

Zawartość zestawu:
– Mini Converter Audio to SDI 4K
– Uniwersalny zasilacz 12 V z międzynarodowymi adapterami gniazdka
– Gwarancja (3-letnia ograniczona gwarancja producenta)

Connections

SDI Video Input

Switchable between SD, HD, 3G and 6G-SDI.

SDI Video Output

Automatically matches the SD, HD, 3G and 6G-SDI video input.

SDI Redundant Input

Automatically switches over if main SDI input is lost.

Analog Audio

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

AES/EBU Digital Audio

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Multi Rate Support

Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.

Updates and Configuration

USB

Reclocking

Yes

Standards

SDI Compliance

SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE

ST-2036

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2, 4:4:4

SDI Color Space

YUV, RGB

SDI Auto Switching

Automatically selects between SD, HD, 3G and 6G-SDI.

SDI Format Support

525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.

Software

Software Control

Mac OS X™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later, Windows 7 or Windows 8.

Settings Control

Mini Switches or USB software.

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

8.40 Watts

Operational Voltage Range

12 V - 31 V DC

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 60° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
